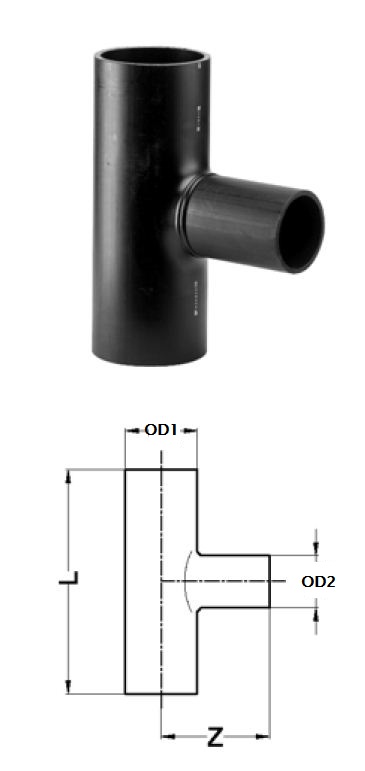

Fully Rated Reducing Tee

OD1/OD2	Part Number	L	Z
200/90	TFR..20090	490	500
200/110	TFR..200110	510	500
225/90	TFR..22590	510	515
225/110	TFR..225110	510	515
250/90	TFR..25090	490	625
250/110	TFR..250110	510	625
250/125	TFR..250125	525	625
250/140	TFR..250140	540	625
250/160	TFR..250160	560	625
280/90	TFR..28090	590	640
280/110	TFR..280110	610	640
280/125	TFR..280125	625	640
280/140	TFR..280140	640	640
280/160	TFR..280160	660	640
280/180	TFR..280180	680	640
315/90	TFR..31590	590	660
315/110	TFR..315110	610	660
315/125	TFR..315125	625	660
315/140	TFR..315140	640	660
315/160	TFR..315160	660	660
315/180	TFR..315180	680	660
315/200	TFR..315200	700	660
355/90	TFR..35590	590	680
355/110	TFR..355110	610	680
355/125	TFR..355125	625	680
355/140	TFR..355140	640	680
355/160	TFR..355160	660	680
355/180	TFR..355180	680	680
355/200	TFR..355200	700	680
355/225	TFR..355225	725	680
400/90	TFR..40090	690	700
400/110	TFR..400110	710	700
400/125	TFR..400125	725	700
400/140	TFR..400140	740	700
400/160	TFR..400160	760	700
400/180	TFR..400180	780	700
400/200	TFR..400200	800	700
400/225	TFR..400225	825	700
400/250	TFR..400250	850	700
450/90	TFR..45090	690	725
450/110	TFR..450110	710	725
450/125	TFR..450125	725	725
450/140	TFR..450140	740	725
450/160	TFR..450160	760	725
450/180	TFR..450180	780	725
450/200	TFR..450200	800	725
450/225	TFR..450225	825	725
450/250	TFR..450250	850	725
450/280	TFR..450280	880	725
500/160	TFR..500160	760	750
500/180	TFR..500180	780	750
500/200	TFR..500200	800	750
500/225	TFR..500225	825	750
500/250	TFR..500250	850	750
500/280	TFR..500280	880	750
500/315	TFR..500315	915	750
560/160	TFR..560160	760	780
560/180	TFR..560180	780	780
560/200	TFR..560200	800	780
560/225	TFR..560225	825	780
560/250	TFR..560250	850	780
560/280	TFR..560280	880	780
560/315	TFR..560315	915	780
560/355	TFR..560355	955	780
630/160	TFR..630160	760	815
630/180	TFR..630180	780	815
630/200	TFR..630200	800	815
630/225	TFR..630225	825	815
630/250	TFR..630250	850	815
630/280	TFR..630280	880	815
630/315	TFR..630315	915	815
630/355	TFR..630355	955	815
630/400	TFR..630400	1000	1215
710/200	TFR..710200	1000	855
710/225	TFR..710225	1025	855
710/250	TFR..710250	1050	855
710/280	TFR..710280	1080	855
710/315	TFR..710315	1115	855
710/355	TFR..710355	1135	855
710/400	TFR..710400	1200	1255
710/450	TFR..710450	1250	1255
800/250	TFR..800250	1050	900
800/280	TFR..800280	1080	900
800/315	TFR..800315	1115	900
800/355	TFR..800355	1135	900
800/400	TFR..800400	1200	1300
800/450	TFR..800450	1250	1300
800/500	TFR..800500	1300	1300
900/250	TFR..900250	1050	950
900/280	TFR..900280	1080	950
900/315	TFR..900315	1115	950
900/355	TFR..900355	1155	950
900/400	TFR..900400	1200	1350
900/450	TFR..900450	1250	1350
900/500	TFR..900500	1300	1350
900/560	TFR..900560	1360	1350
900/630	TFR..900630	1360	1350
1000/250	TFR..1000250	1050	1000
1000/280	TFR..1000280	1080	1000
1000/315	TFR..1000315	1115	1000
1000/355	TFR..1000355	1135	1000
1000/400	TFR..1000400	1200	1400
1000/450	TFR..1000450	1250	1400
1000/500	TFR..1000500	1300	1400
1000/560	TFR..1000560	1360	1400
1000/630	TFR..1000630	1430	1400
1200/315	TFR..1200315	1315	1150
1200/355	TFR..1200355	1335	1150
1200/400	TFR..1200400	1400	1500
1200/450	TFR..1200450	1450	1500
1200/500	TFR..1200500	1500	1500
1200/560	TFR..1200560	1560	1500
1200/630	TFR..1200630	1630	1500
1200/710	TFR..1200710	1710	1900
1400/315	TFR..1400315	1315	1200
1400/355	TFR..1400355	1355	1200
1400/400	TFR..1400400	1400	1600
1400/450	TFR..1400450	1450	1600
1400/500	TFR..1400500	1500	1600
1400/560	TFR..1400560	1560	1600
1400/630	TFR..1400630	1630	1600
1400/710	TFR..1400710	1710	2000
1400/800	TFR..1400800	1800	2000
1600/315	TFR..1600315	1315	1300
1600/355	TFR..1600355	1355	1300
1600/400	TFR..1600400	1400	1700
1600/450	TFR..1600450	1450	1700
1600/500	TFR..1600500	1500	1700
1600/560	TFR..1600560	1560	1700
1600/630	TFR..1600630	1630	1700
1600/710	TFR..1600710	1710	2100
1600/800	TFR..1600800	1800	2100

*Measurements are in millimeters

*Measurements are approximate

..SDR Rating to be specified
