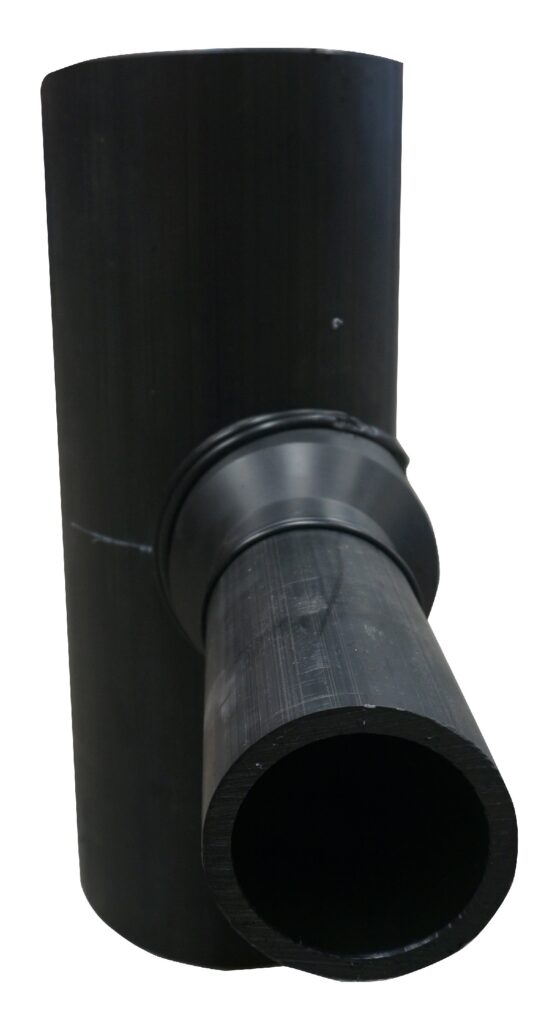

Fully Rated Scour Tee

Enviropipes Inverted Scour Tee welded PE100

for butt-welding and electrofusion

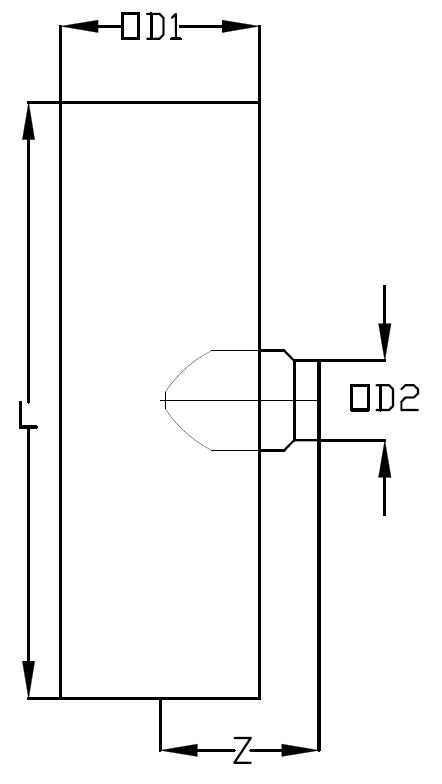

OD1/OD2	Part Number	L	Z
250/110	ST..250110	800	625
250/160	ST..250160	800	625
280/110	ST..280110	800	640
280/160	ST..280160	800	640
315/110	ST..315110	800	660
315/160	ST..315160	800	660
355/110	ST..355110	1000	680
355/160	ST..355160	1000	680
400/160	ST..400160	1100	700
400/200	ST..400200	1100	700
450/160	ST..450160	1100	725
450/200	ST..450200	1100	725
500/110	ST..500110	1100	750
500/160	ST..500160	1100	750
500/200	ST..500200	1100	750
560/110	ST..560110	1100	780
560/160	ST..560160	1100	780
560/200	ST..560200	1100	780
630/250	ST..630250	1200	815
630/280	ST..630280	1200	815
630/315	ST..630315	1200	815
710/250	ST..710250	1200	855
710/280	ST..710280	1200	855
710/315	ST..710315	1200	855
800/250	ST..800250	1200	900
800/280	ST..800280	1200	900
800/315	ST..800315	1200	900
900/250	ST..900250	1200	950
900/280	ST..900280	1200	950
900/315	ST..900315	1200	950
1000/250	ST..1000250	1200	1000
1000/280	ST..1000280	1200	1000
1000/315	ST..1000315	1200	1000
1200/250	ST..1200250	1200	1100
1200/280	ST..1200280	1200	1100
1200/315	ST..1200315	1200	1100

*Measurements are in millimeters

*Measurements are approximate

..SDR Rating to be specified
