Reducers

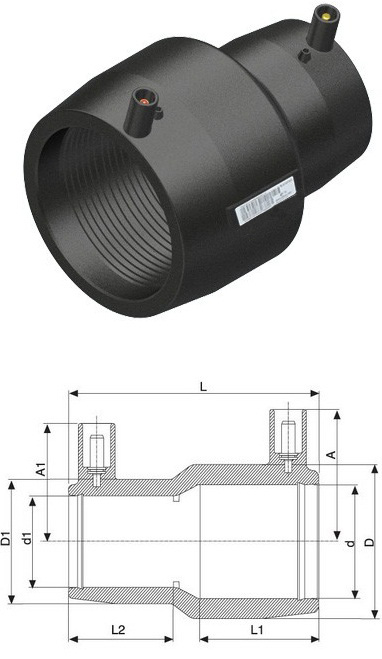

Reducing Coupler

for electrofusion (water 16 bar/gas 10 bar)

d/d1	Part Number	D	D1	A	A1	L	L1	L2
32/20	EFRS03220	44	32	42	36	80	39	35
32/25	EFRS03225	44	36	42	39	80	39	35
40/25	EFRS04025	56	36	47	39	90	44	40
40/32	EFRS04032	56	44	47	42	90	44	39
50/25	EFRS05025	68	36	52	39	100	48	41
50/32	EFRS05032	68	44	52	44	98	48	39
50/40	EFRS05040	68	56	52	48	98	48	44
63/32	EFRS06332	82	44	58	44	118	57	39
63/40	EFRS06340	82	56	58	48	118	57	44
63/50	EFRS06350	82	68	58	53	118	57	49
75/63	EFRS07563	98	82	65	58	126	61	57
90/50	EFRS09050	117	68	77	52	142	72	49
90/63	EFRS09063	117	82	77	59	144	72	58
90/75	EFRS09075	117	98	77	66	145	72	61
110/63	EFRS11063	140	82	83	59	158	80	58
110/90	EFRS11090	140	117	83	69	161	80	72
125/90	EFRS12590	156	117	87	69	173	85	72
125/110	EFRS125110	156	140	87	79	173	85	80
160/90	EFRS16090	200	117	104	69	192	96	73
160/110	EFRS160110	200	140	104	79	193	96	80
160/125	EFRS160125	200	157	104	87	194	96	85
180/125	EFRS180125	224	157	114	87	211	105	85

*Measurements are in millimeters

*Measurements are approximate
