Threaded Compression Elbows

Contact Sales

+61 (8) 9352 8444

sales@enviropipes.com.au

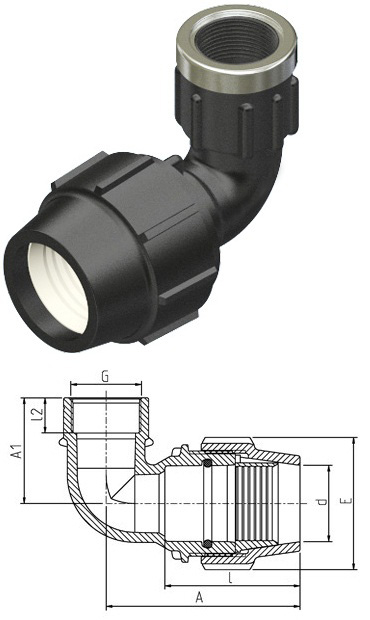

Elbow 90° with threaded female off take

for water

dxG	Part Number	E	L	L2	A	A1
16×1/2“	CEF01612	39	50	19	66	39
20×1/2“	CEF02012	48	54	19	78	40
20×3/4“	CEF02034	48	52	19	72	44
25×1/2“	CEF02512	54	57	18	80	46
25×3/4“	CEF02534	54	57	19	80	46
25×1″	CEF0251	54	57	21	82	50
32×3/4“	CEF03234	64	66	18	94	54
32×1″	CEF0321	64	66	22	94	54
32×1 1/4“	CEF032114	64	66	25	98	60
40×1″	CEF0401	82	85	21	116	52
40×1 1/4“	CEF040114	82	85	25	120	61
40×1 1/2“	CEF040112	82	85	25	120	61
40×2″	CEF0402	82	85	30	125	80
50×1″	CEF0501	96	93	21	133	57
50×1 1/4“	CEF050114	96	93	25	133	67
50×1 1/2“	CEF050112	96	93	25	135	66
50×2″	CEF0502	96	93	30	138	85
63×1 1/4“	CEF063114	113	110	25	160	65
63×1 1/2“	CEF063112	113	110	25	160	69
63×2″	CEF0632	113	110	30	160	90
75×2″	CEF0752	132	136	30	191	100
75×2 1/2“	CEF075212	132	136	36	195	105
75×3″	CEF0753	132	136	36	195	105

*Measurements are in millimeters

*Measurements are approximate

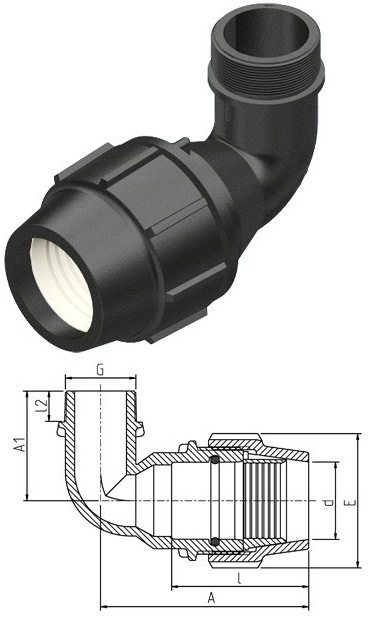

Elbow 90° with threaded male off take

for water

dxG	Part Number	E	L	L2	A	A1
20×1/2“	CEM02012	48	57	17	69	41
20×3/4“	CEM02034	48	57	18	76	43
25×1/2“	CEM02512	54	58	17	88	47
25×3/4“	CEM02534	54	58	18	89	50
25×1″	CEM0251	54	58	20	84	52
32×1″	CEM0321	64	67	20	103	58
32×1 1/4“	CEM032114	64	67	20	103	58
40×1″	CEM0401	82	83	20	127	69
40×1 1/4“	CEM040114	82	83	22	127	71
40×1 1/2“	CEM040112	82	83	22	127	71
50×1″	CEM0501	96	94	20	141	71
50×1 1/4“	CEM050114	96	94	22	145	77
50×1 1/2“	CEM050112	96	94	22	145	77
63×1 1/4“	CEM063114	115	110	22	170	77
63×1 1/2“	CEM063112	115	110	22	170	77
63×2″	CEM0632	115	110	26	170	92
75×2 1/2“	CEM075212	132	136	30	206	105
75×3″	CEM0753	132	136	33	206	110
90×3″	CEM0903	152	164	34	232	110
110×4″	CEM1104	181	196	43	276	140

*Measurements are in millimeters

*Measurements are approximate
