Fabricated Tee
for butt-welding and electrofusion

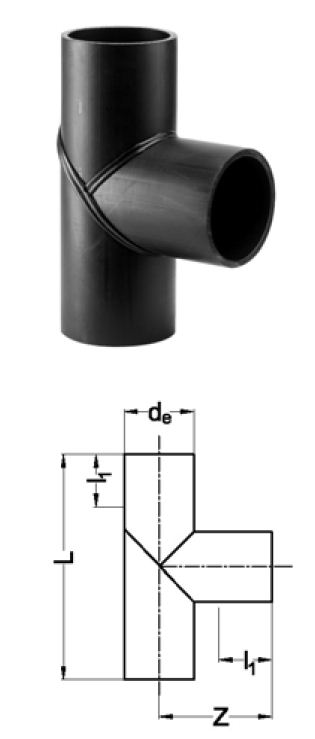

| de | Part Number | L | Z |
|---|---|---|---|
| 90 | TF..090 | 400 | 200 |
| 110 | TF..110 | 500 | 250 |
| 125 | TF..125 | 500 | 250 |
| 140 | TF..140 | 500 | 500 |
| 160 | TF..160 | 600 | 500 |
| 180 | TF..180 | 600 | 500 |
| 200 | TF..200 | 600 | 500 |
| 225 | TF..225 | 650 | 550 |
| 250 | TF..250 | 700 | 600 |
| 280 | TF..280 | 700 | 650 |
| 315 | TF..315 | 800 | 700 |
| 355 | TF..355 | 800 | 700 |
| 400 | TF..400 | 1000 | 1100 |
| 450 | TF..450 | 1050 | 1100 |
| 500 | TF..500 | 1100 | 1150 |
| 560 | TF..560 | 1200 | 1200 |
| 630 | TF..630 | 1200 | 1200 |
| 710 | TF..710 | 1500 | 1650 |
| 800 | TF..800 | 1600 | 1700 |
| 900 | TF..900 | 2000 | 1750 |
| 1000 | TF..1000 | 2500 | 1800 |
| 1200 | TF..1200 | 2800 | 1900 |
*Measurements are in millimeters
*Measurements are approximate
..SDR Rating to be specified
Please note: This fitting has a de-rating factor, for further information please refer to the Plastics Industry Pipe Association of Australia (PIPA) Technical Guidelines.
