Couplings

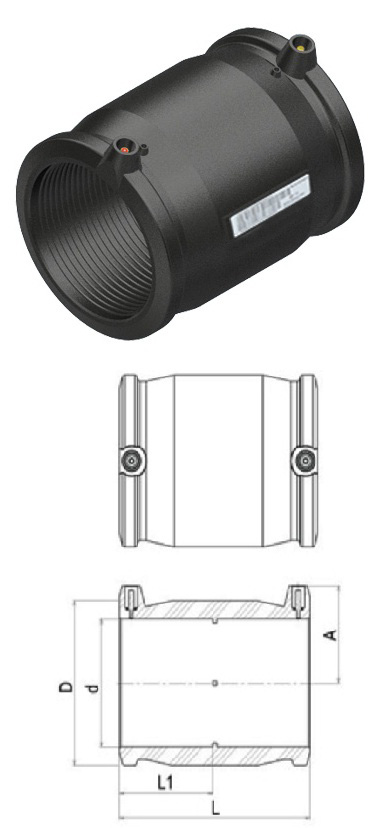

Coupler

for electrofusion (water 16 bar/gas 10 bar)

d	Part Number	D	L	L1	A
20	EFS020	31	76	37	34
25	EFS025	36	82	40	37
32	EFS032	44	88	42	42
40	EFS040	56	97	47	46
50	EFS050	67	101	49	51
63	EFS063	82	117	57	57
75	EFS075	98	126	61	64
90	EFS090	112	148	73	71
110	EFS110	135	163	80	81
125	EFS125	157	173	85	87
140	EFS140	174	183	90	97
160	EFS160	194	195	93	105
180	EFS180	218	212	105	116
200	EFS200	242	223	109	126
225	EFS225	272	240	119	138
250	EFS250	301	251	123	156
280	EFS280	342	275	134	170
315	EFS315	387	282	139	184
355	EFS355	431	277	137	203
400	EFS400	485	293	145	231
450	EFS450	539	306	153	257
500	EFS500	603	340	170	283
560	EFS560	674	376	188	317
630	EFS630	759	418	209	356
710	EFS710	853	472	236	400
800	EFS800	955	500	250	450

*Measurements are in millimeters

*Measurements are approximate
