Compression Tees
Contact Sales

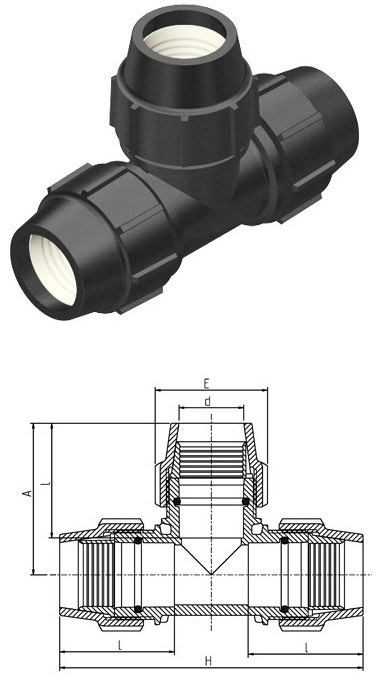

Tee 90°
For water
| d | Part Number | E | H | L | A |
|---|---|---|---|---|---|
| 16 | CT016 | 39 | 126 | 50 | 63 |
| 20 | CT020 | 48 | 145 | 57 | 74 |
| 25 | CT025 | 54 | 152 | 57 | 77 |
| 32 | CT032 | 64 | 175 | 65 | 88 |
| 40 | CT040 | 82 | 221 | 84 | 111 |
| 50 | CT050 | 96 | 251 | 93 | 126 |
| 63 | CT063 | 113 | 292 | 109 | 146 |
| 75 | CT075 | 132 | 359 | 141 | 180 |
| 90 | CT090 | 152 | 436 | 163 | 218 |
| 110 | CT110 | 181 | 588 | 196 | 294 |
| 160 | CT160 | 280 | 601 | 204 | 301 |
*Measurements are in millimeters
*Measurements are approximate
*Please note 160 compression 90° Tee is PN10 (10 bar) only

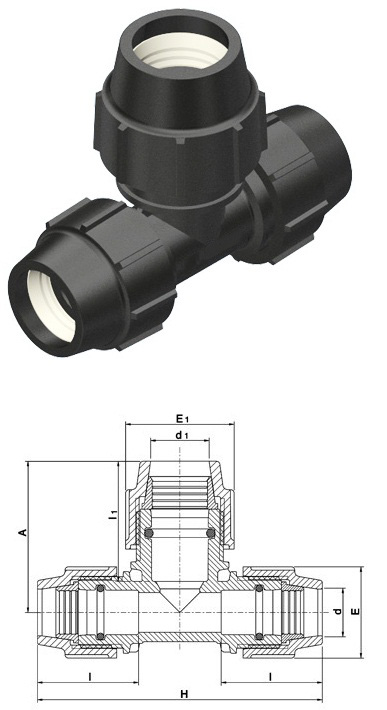

Tee 90° Reducing
water 16 bar
| dxd1 | Part Number | E | E1 | H | l | l2 | A |
|---|---|---|---|---|---|---|---|
| 20X16 | CTR02016 | 48 | 39 | 142 | 60 | 53 | 69 |
| 25X20 | CTR02520 | 53 | 48 | 154 | 60 | 58 | 76 |
| 32X25 | CTR03225 | 63 | 53 | 171 | 66 | 60 | 85 |
| 40X25 | CTR04025 | 82 | 53 | 202 | 82 | 60 | 85 |
| 40X32 | CTR04032 | 82 | 63 | 209 | 82 | 66 | 96 |
| 50X25 | CTR05025 | 96 | 53 | 238 | 93 | 78 | 107 |
| 50X32 | CTR05032 | 96 | 63 | 238 | 93 | 66 | 116 |
| 50X40 | CTR05040 | 96 | 82 | 236 | 93 | 82 | 114 |
| 63X32 | CTR06332 | 113 | 63 | 266 | 112 | 66 | 116 |
| 63X40 | CTR06340 | 113 | 82 | 266 | 112 | 84 | 139 |
| 63X50 | CTR06350 | 113 | 96 | 273 | 109 | 93 | 135 |
| 75X63 | CTR07563 | 132 | 113 | 360 | 141 | 109 | 156 |
*Measurements are in millimeters
*Measurements are approximate
