Tapping Saddles

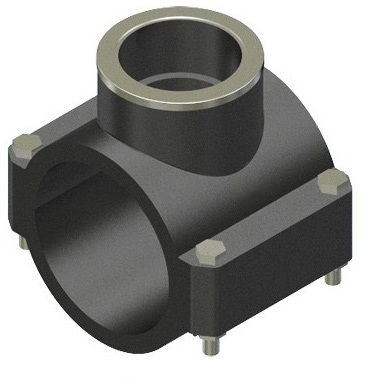

Tapping Saddles with S/S reinforcing ring and galvanised bolts

bolt on for water

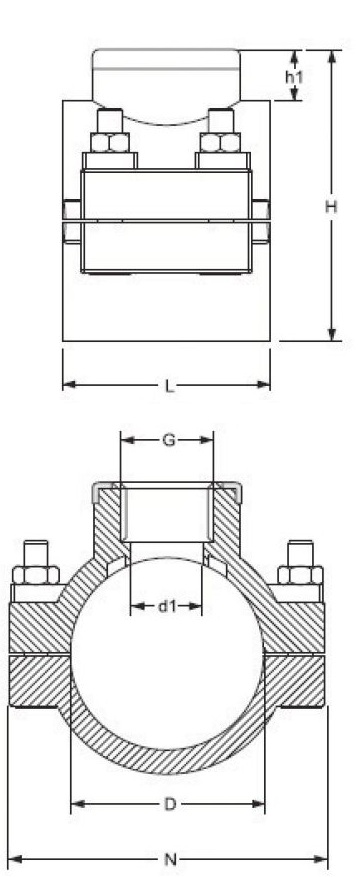

D x G	Part Number	d1	N	L	H	h1
25 x 1/2“	TS02512	12	84.5	50	61	19.5
25 x 3/4“	TS02534	12	84.5	50	61	19.5
32 x 1/2“	TS03212	16.5	84.5	50	61	19.5
32 x 3/4“	TS03234	16.5	84.5	50	61	19.5
40 x 1/2“	TS04012	17.5	83	60	70	19.5
40 x 3/4“	TS04034	17.5	83	60	70	19.5
50 x 1/2“	TS05012	17.5	90	68	81	18
50 x 3/4“	TS05034	17.5	90	68	81	19
50 x 1″	TS0501	25	90	68	81	22
63 x 1/2“	TS06312	17.5	96	67.5	98.5	17
63 x 3/4“	TS06334	17.5	96	67.5	98.5	17
63 x 1″	TS0631	23.5	96	67.5	98.5	17
63 x 1 1/4“	TS063114	31	96	67.5	98.5	17
75 x 1/2“	TS07512	18	114	75	113	19.5
75 x 3/4“	TS07534	18	114	75	113	19.5
75 x 1″	TS0751	25	114	75	113	19.5
75 x 1 1/4“	TS075114	32	114	75	113	19.5
75 x 1 1/2“	TS075112	38	114	75	113	19.5
90 x 1/2“	TS09012	18	125	84.5	129	20
90 x 3/4“	TS09034	18	123	84.5	129	20
90 x 1″	TS0901	25	125	84.5	129	20
90 x 1 1/4“	TS090114	32	125	84.5	129	20
90 x 1 1/2“	TS090112	38	127	84.5	129	20
90 x 2″	TS0902	49	125	84.5	129	20
110 x 1/2“	TS11012	18	146.5	99	151	18
110 x 3/4“	TS11034	24	150	99	151	18
110 x 1″	TS1101	25	150	99	151	18
110 x 1 1/4“	TS110114	39	150	99	151	18
110 x 1 1/2“	TS110112	41	150	99	151	18
110 x 2″	TS1102	41	150	99	154	22.5
110 x 21/2“	TS110212	41	150	99	154	22.5
110 x 3″	TS1103	41	150	99	154	22.5
125 x 3/4“	TS12534	18	171	99.5	167	19
125 x 1″	TS1251	25	171	99.5	167	19
125 x 1 1/4“	TS125114	32	171	99.5	167	19
125 x 1 1/2“	TS125112	38	171	99.5	167	19
125 x 2″	TS1252	49	171	99.5	167	19
140 x 1″	TS1401	30.5	180	137	188.5	25
140 x 1 1/4“	TS140114	38	180	137	188.5	25
140 x 1 1/2“	TS140112	43	180	137	188.5	25
140 x 2″	TS1402	51	180	137	188.5	25
140 x 3″	TS1403	77	180	137	188.5	25
160 x 1/2“	TS16012	24	197	137	213	25
160 x 3/4“	TS16034	24	197	137	213	25
160 x 1″	TS1601	30	197	137	213	25
160 x 1 1/4“	TS160114	38	203	137	213	25
160 x 1 1/2“	TS160112	43.5	204	137	209	25.5
160 x 2″	TS1602	51	208	137	204	25.5
160 x 3″	TS1603	77	208	137	215.5	35.5
160 x 4″	TS1604	102	208	137	210.5	36.5
200 x 3/4“	TS20034	26	270	195	252	23
200 x 1″	TS2001	26	270	195	252	23
200 x 1 1/4“	TS200114	30.5	270	195	247	25
200 x 1 1/2“	TS200112	44	270	195	243	25.5
200 x 2″	TS2002	51.5	270	195	246	25
200 x 3″	TS2003	77	270	195	252	35.5
200 x 4″	TS2004	102	270	195	255.5	35.5
225 x 1/2“	TS22512	24	300	195	267	25.5
225 x 3/4“	TS22534	24	300	195	267	25.5
225 x 1″	TS2251	30	300	195	267	25.5
225 x 1 1/4“	TS225114	30	286	195	273	25.5
225 x 1 1/2“	TS225112	44	286	195	274.5	25.5
225 x 2″	TS2252	51.5	289	195	271	25
225 x 3″	TS2253	77	302	195	279	35.5
225 x 4″	TS2254	102	300	195	280	35.5
250 x 1″	TS2501	30	330	244	294.5	24.5
250 x 1 1/4“	TS250114	30	330	244	295.5	25.5
250 x 1 1/2“	TS250112	44	330	244	296	26
250 x 2″	TS2502	51.5	330	244	296	26
250 x 3″	TS2503	77	330	243	298	35
250 x 4″	TS2504	102	330	243	298	36
315 x 1″	TS3151	33.5	400	244	373.5	23.5
315 x 1 1/4“	TS315114	33.5	400	244	376	26
315 x 1 1/2“	TS315112	44	400	244	376	26
315 x 2″	TS3152	51	400	244	376	26
315 x 3″	TS3153	77	400	244	380.5	35
315 x 4″	TS3154	102	400	244	284.5	35

*Measurements are in millimeters

*Measurements are approximate
