Tapping Saddle

Tapping Saddle

for electrofusion (water 16 bar/gas 10 bar)

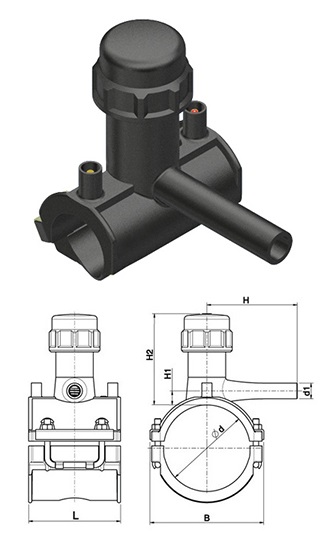

dxd1	Part Number	L	H	B	H2	H1
40X20	TSEF04020	100	107	66	94	7
40X25	TSEF04025	100	90	65	98	7
40X32	TSEF04032	100	121	66	94	12
50X20	TSEF05020	100	110	76	98	7
50X25	TSEF05025	100	91	76	98	10
50X32	TSEF05032	100	122	76	98	12
63X20	TSEF06320	118	90	100	90	10
63X25	TSEF06325	118	93	100	90	12
63X32	TSEF06332	118	99	100	90	12
63X40	TSEF06340	118	142	100	177	64
63X50	TSEF06350	118	154	100	177	64
63X63	TSEF06363	118	175	100	177	64
75X20	TSEF07520	118	125	117	177	50
75X32	TSEF07532	118	132	117	177	56
75X40	TSEF07540	118	142	117	177	60
75X50	TSEF07550	118	123	117	177	64
75X63	TSEF07563	118	175	117	177	64
90X20	TSEF09020	118	117	126	114	16
90X25	TSEF09025	118	108	126	114	16
90X32	TSEF09032	118	126	126	114	16
90X40	TSEF09040	118	134	126	114	21
90X50	TSEF09050	118	123	126	177	64
90X63	TSEF09063	118	175	126	177	64
110X20	TSEF11020	118	119	148	114	16
110X25	TSEF11025	118	118	148	114	16
110X32	TSEF11032	118	127	148	114	16
110X40	TSEF11040	118	138	148	114	21
110X50	TSEF11050	118	123	148	177	64
110X63	TSEF11063	118	175	148	177	64
125X20	TSEF12520	118	116	162	114	16
125X32	TSEF12532	118	131	162	114	16
125X40	TSEF12540	118	141	162	114	21
125X50	TSEF12550	118	123	162	177	64
125X63	TSEF12563	118	175	162	177	64
140X20	TSEF14020	118	125	180	177	50
140X32	TSEF14032	118	132	180	177	56
140X40	TSEF14040	118	142	180	177	60
140X50	TSEF14050	118	123	180	177	64
140X63	TSEF14063	118	175	180	177	64
160X20	TSEF16020	118	118	199	138	21
160X32	TSEF16032	118	144	199	138	16
160X40	TSEF16040	118	157	199	138	21
160X50	TSEF16050	118	175	199	138	24
160X63	TSEF16063	118	197	199	138	20
180X20	TSEF18020	118	125	219	177	50
180X32	TSEF18032	118	144	219	138	18
180X40	TSEF18040	118	155	219	138	21
180X50	TSEF18050	118	174	219	138	24
180X63	TSEF18063	118	197	219	138	20
200X20	TSEF20020	176	125	202	177	50
200X32	TSEF20032	176	132	202	177	56
200X40	TSEF20040	176	142	202	177	60
200X50	TSEF20050	176	123	202	177	64
200X63	TSEF20063	176	175	202	177	64
225X20	TSEF22520	176	125	227	177	50
225X32	TSEF22532	176	132	227	177	56
225X40	TSEF22540	176	142	227	177	60
225X50	TSEF22550	176	123	227	177	64
225X63	TSEF22563	176	175	227	177	64
250X20	TSEF25020	176	125	252	177	50
250X32	TSEF25032	176	132	252	177	56
250X40	TSEF25040	176	142	252	177	60
250X50	TSEF25050	176	123	252	177	64
250X63	TSEF25063	176	175	252	177	64

*Measurements are in millimeters

*Measurements are approximate
