Branch Saddle

Branch Saddle

for electrofusion (water 16 bar/gas 10 bar)

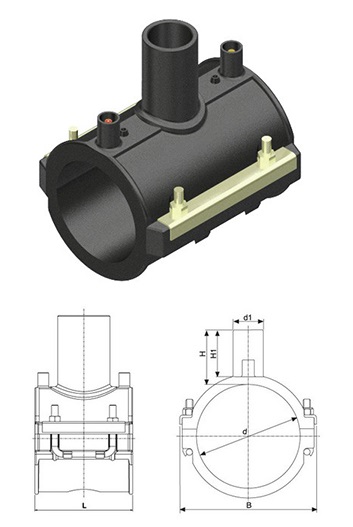

dxd1	Part Number	L	H	B	H1
63X32	EFBS06332	118	59	100	49
63X40	EFBS06340	118	78	100	66
63X50	EFBS06350	118	93	100	82
63X63	EFBS06363	118	94	100	85
75X32	EFBS07532	118	59	117	49
75X40	EFBS07540	118	78	117	66
75X50	EFBS07550	118	93	117	82
75X63	EFBS07563	118	94	117	85
90X32	EFBS09032	118	59	126	49
90X40	EFBS09040	118	78	126	68
90X50	EFBS09050	118	93	126	82
90X63	EFBS09063	118	94	126	85
90X90	EFBS09090	176	105	139	90
110X32	EFBS11032	118	59	148	49
110X40	EFBS11040	118	78	148	68
110X50	EFBS11050	118	93	148	82
110X63	EFBS11063	118	94	148	85
110X90	EFBS11090	176	105	162	90
125X32	EFBS12532	118	59	162	49
125X40	EFBS12540	118	78	162	68
125X50	EFBS12550	118	93	162	82
125X63	EFBS12563	118	94	162	85
125X90	EFBS12590	176	105	169	90
140X32	EFBS14032	118	59	180	49
140X40	EFBS14040	118	78	180	68
140X50	EFBS14050	118	93	180	82
140X63	EFBS14063	118	94	180	85
140X90	EFBS14090	176	105	174	90
160X32	EFBS16032	118	59	200	49
160X40	EFBS16040	118	78	200	68
160X50	EFBS16050	118	93	200	82
160X63	EFBS16063	118	94	200	85
160X90	EFBS16090	176	105	176	90
180X32	EFBS18032	118	59	219	49
180X40	EFBS18040	118	78	219	68
180X50	EFBS18050	118	93	219	82
180X63	EFBS18063	118	94	219	85
180X90	EFBS18090	176	105	182	90
200X63	EFBS20063	176	102	202	85
200X90	EFBS20090	176	105	202	90
225X63	EFBS22563	176	102	227	85
225X90	EFBS22590	176	105	227	90
250X63	EFBS25063	176	102	252	85
250X90	EFBS25090	176	105	252	90
280X90	EFBS28090	176	105	282	90
315X90	EFBS31590	176	105	317	90

*Measurements are in millimeters

*Measurements are approximate
