Segmented Bends

Contact Sales

+61 (8) 9352 8444

sales@enviropipes.com.au

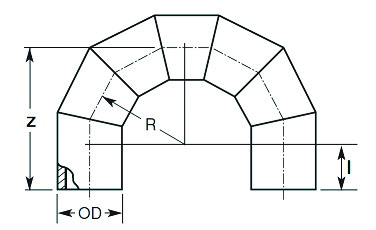

180 Degree Segmented Bend

for butt-welding and electrofusion

OD	Part Number	Z	l	R
90	SB..090180	235	100	135
110	SB..110180	265	100	165
125	SB..125180	338	150	188
140	SB..140180	360	150	210
160	SB..160180	390	150	240
180	SB..180180	420	150	270
200	SB..200180	450	150	300
225	SB..225180	488	150	338
250	SB..250180	625	150	375
280	SB..280180	670	150	420
315	SB..315180	777	300	477
355	SB..355180	833	300	533
400	SB..400180	900	300	600
450	SB..450180	975	300	675
500	SB..500180	1100	350	750
560	SB..560180	1190	350	840
630	SB..630180	1295	350	945
710	SB..710180	1415	350	1065
800	SB..800180	1550	350	1200
900	SB..900180	1750	400	1350
1000	SB..1000180	1900	400	1500
1200	SB..1200180	2200	400	1800
1400	SB..1400180	2600	500	2100
1600	SB..1600180	2900	500	2400
Measurements are in millimeters Measurements are approximate ..SDR Rating to be specified Please note: This fitting has a de-rating factor, for further information please refer to the Plastics Industry Pipe Association of Australia (PIPA) Technical Guidelines.

90 Degree Segmented Bend

for butt-welding and electrofusion

d_e	Part Number	Z	l	R
90	SB..09090	235	100	135
110	SB..11090	265	100	165
125	SB..12590	338	150	188
140	SB..14090	360	150	210
160	SB..16090	390	150	240
180	SB..18090	425	150	270
200	SB..20090	450	150	300
225	SB..22590	488	150	338
250	SB..25090	625	250	375
280	SB..28090	670	250	420
315	SB..31590	777	300	477
355	SB..35590	833	300	533
400	SB..40090	900	300	600
450	SB..45090	975	300	675
500	SB..50090	1100	350	750
560	SB..56090	1190	350	840
630	SB..63090	1295	350	945
710	SB..71090	1415	350	1065
800	SB..80090	1550	350	1200
900	SB..90090	1750	400	1350
1000	SB..100090	1900	400	1500
1200	SB..120090	2200	400	1800
1400	SB..140090	2600	500	2100
1600	SB..160090	2900	500	2400
Measurements are in millimeters Measurements are approximate ..SDR Rating to be specified Please note: This fitting has a de-rating factor, for further information please refer to the Plastics Industry Pipe Association of Australia (PIPA) Technical Guidelines.

60 Degree Segmented Bend

for butt-welding and electrofusion

d_e	Part Number	Z	l	r
90	SB..09060	175	100	135
110	SB..11060	191	100	165
125	SB..12560	254	150	188
140	SB..14060	266	150	210
160	SB..16060	283	150	240
180	SB..18060	300	150	270
200	SB..20060	316	150	300
225	SB..22560	337	150	338
250	SB..25060	458	250	375
280	SB..28060	483	250	420
315	SB..31560	565	300	477
355	SB..35560	596	300	533
400	SB..40060	633	300	600
450	SB..45060	674	300	675
500	SB..50060	766	350	750
560	SB..56060	816	350	840
630	SB..63060	874	350	945
710	SB..71060	941	350	1065
800	SB..80060	1015	350	1200
900	SB..90060	1149	400	1350
1000	SB..100060	1232	400	1500
1200	SB..120060	1398	400	1800
1400	SB..140060	1665	500	2100
1600	SB..160060	1831	500	2400
Measurements are in millimeters Measurements are approximate ..SDR Rating to be specified Please note: This fitting has a de-rating factor, for further information please refer to the Plastics Industry Pipe Association of Australia (PIPA) Technical Guidelines.

45 Degree Segmented Bend

for butt-welding and electrofusion

d_e	Part Number	Z	l	r
90	SB..09045	154	100	135
110	SB..11045	166	100	165
125	SB..12545	225	150	188
140	SB..14045	234	150	210
160	SB..16045	246	150	240
180	SB..18045	258	150	270
200	SB..20045	270	150	300
225	SB..22545	285	150	338
250	SB..25045	400	250	375
280	SB..28045	418	250	420
315	SB..31545	491	300	477
355	SB..35545	513	300	533
400	SB..40045	540	300	600
450	SB..45045	570	300	675
500	SB..50045	650	350	750
560	SB..56045	686	350	840
630	SB..63045	728	350	945
710	SB..71045	776	350	1065
800	SB..80045	830	350	1200
900	SB..90045	940	400	1350
1000	SB..100045	1000	400	1500
1200	SB..120045	1120	400	1800
1400	SB..140045	1240	500	2100
1600	SB..160045	1461	500	2400
Measurements are in millimeters Measurements are approximate ..SDR Rating to be specified Please note: This fitting has a de-rating factor, for further information please refer to the Plastics Industry Pipe Association of Australia (PIPA) Technical Guidelines.

30 Degree Segmented Bend

for butt-welding and electrofusion

d_e	Part Number	Z	l	r
90	SB..09030	135	100	135
110	SB..11030	193	150	165
125	SB..12530	199	150	188
140	SB..14030	204	150	210
160	SB..16030	212	150	240
180	SB..18030	220	150	270
200	SB..20030	228	150	300
225	SB..22530	237	150	338
250	SB..25030	347	250	375
280	SB..28030	359	250	420
315	SB..31530	423	300	477
355	SB..35530	437	300	533
400	SB..40030	455	300	600
450	SB..45030	474	300	675
500	SB..50030	544	350	750
560	SB..56030	567	350	840
630	SB..63030	595	350	945
710	SB..71030	625	350	1065
800	SB..80030	660	350	1200
900	SB..90030	750	400	1350
1000	SB..100030	788	400	1500
1200	SB..120030	866	400	1800
1400	SB..140030	1044	500	2100
1600	SB..160030	1121	500	2400
Measurements are in millimeters Measurements are approximate ..SDR Rating to be specified Please note: This fitting has a de-rating factor, for further information please refer to the Plastics Industry Pipe Association of Australia (PIPA) Technical Guidelines.
